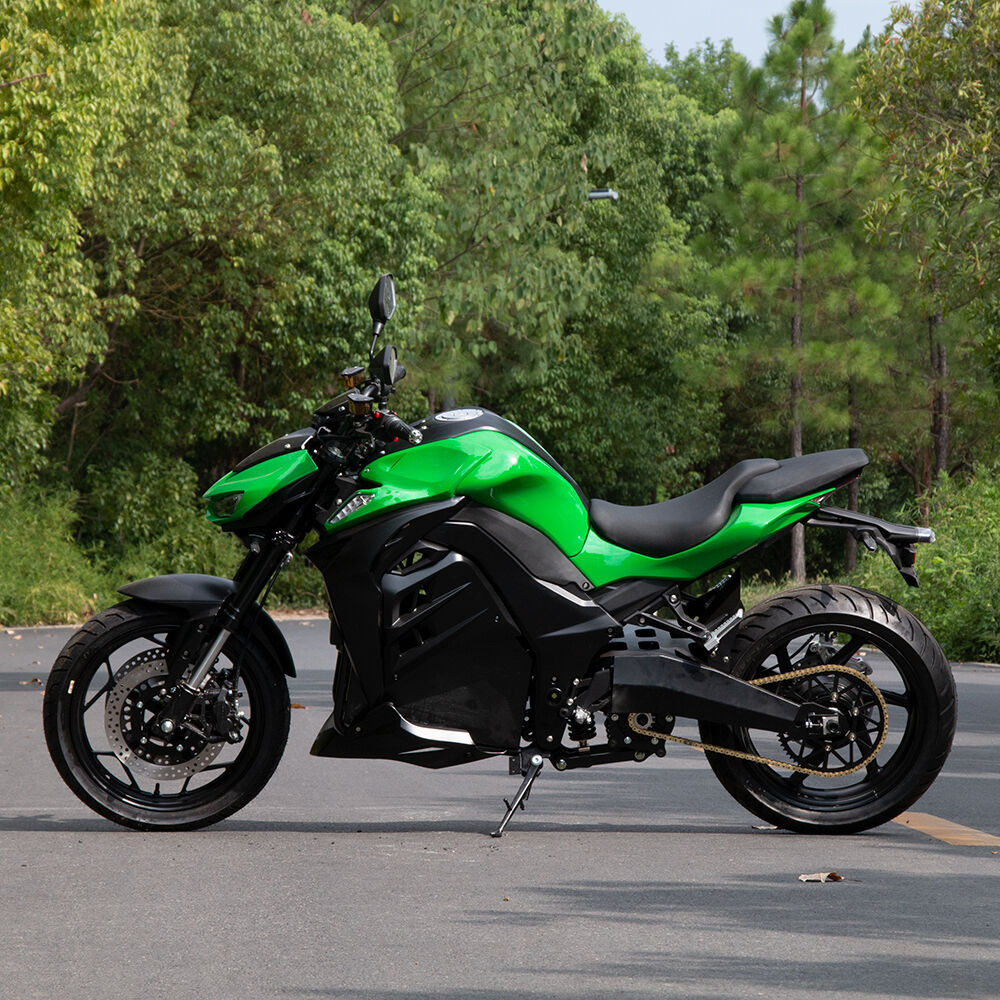

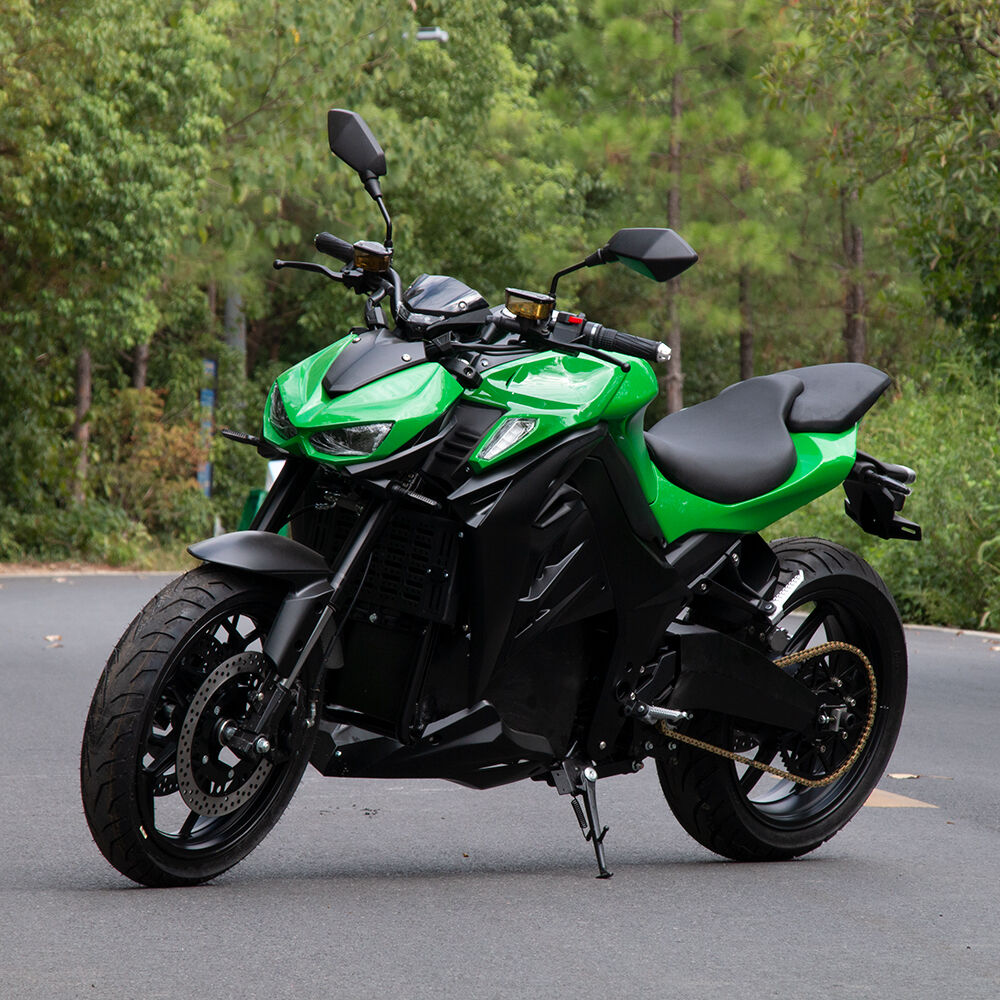

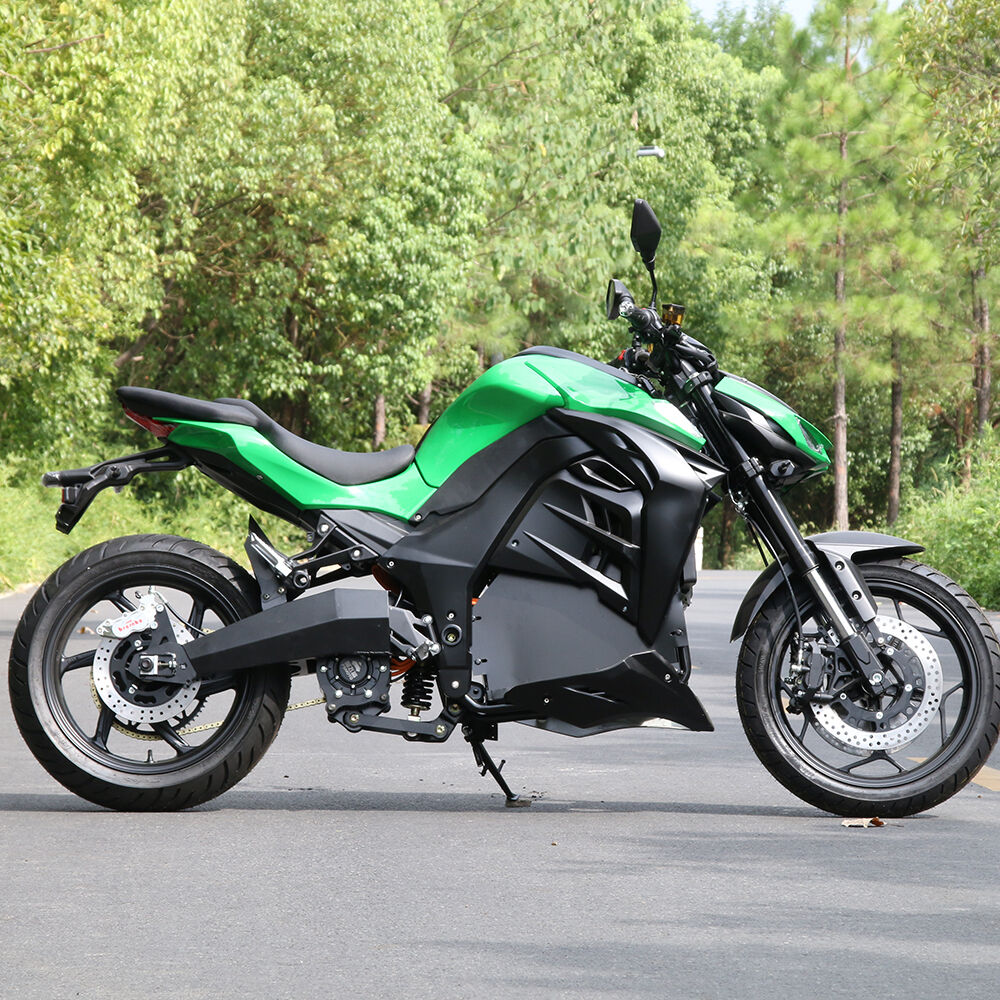

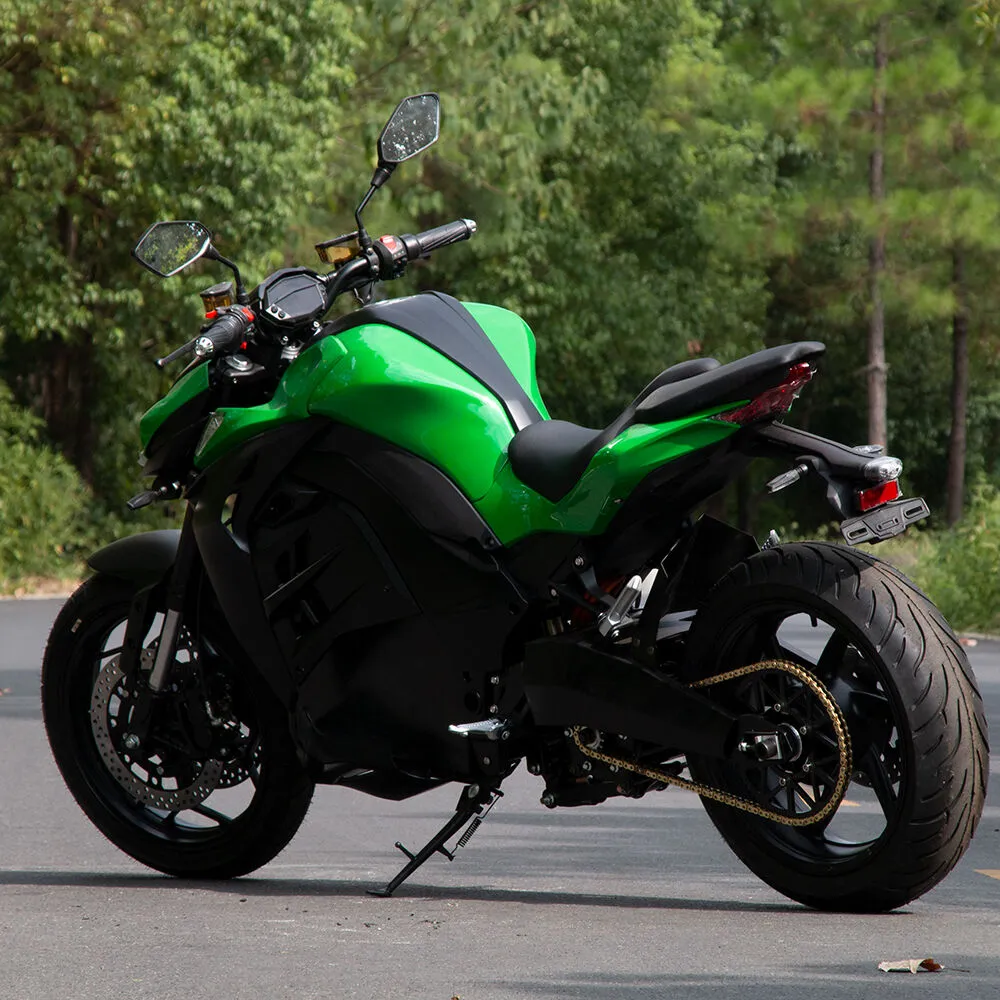

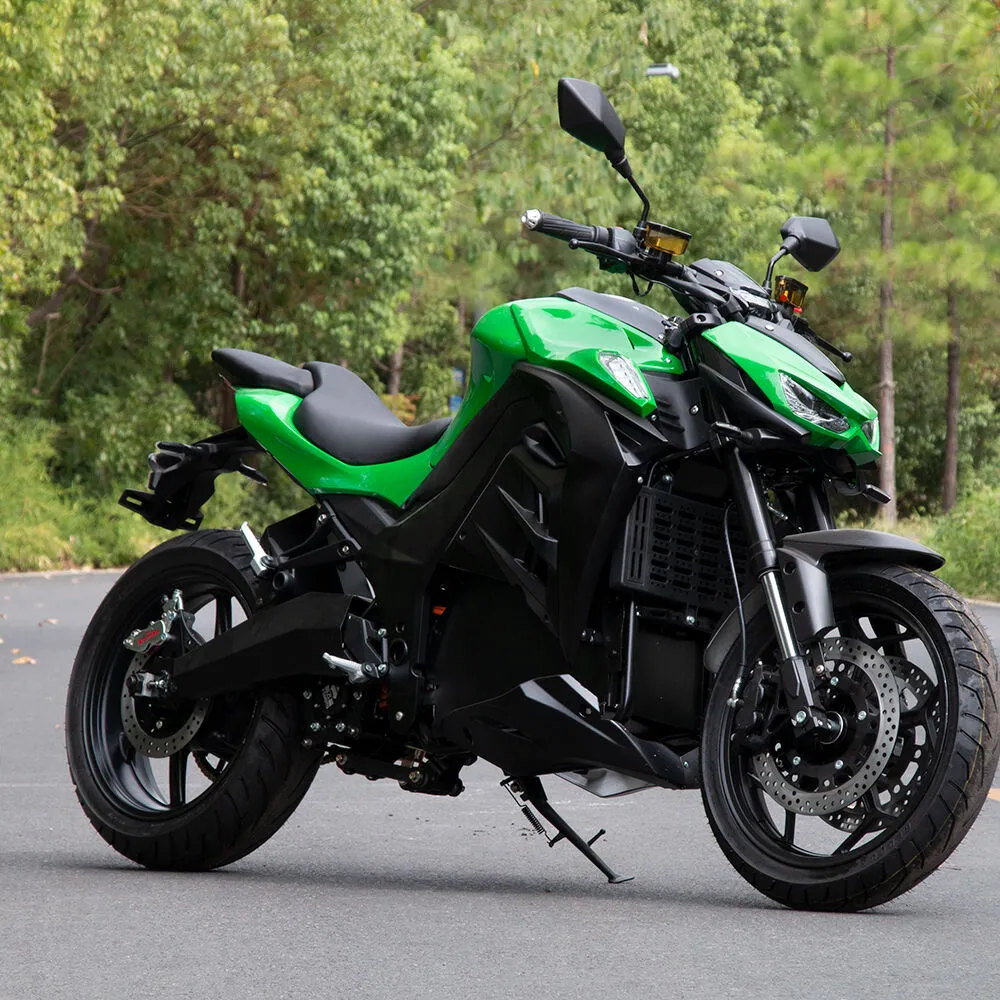

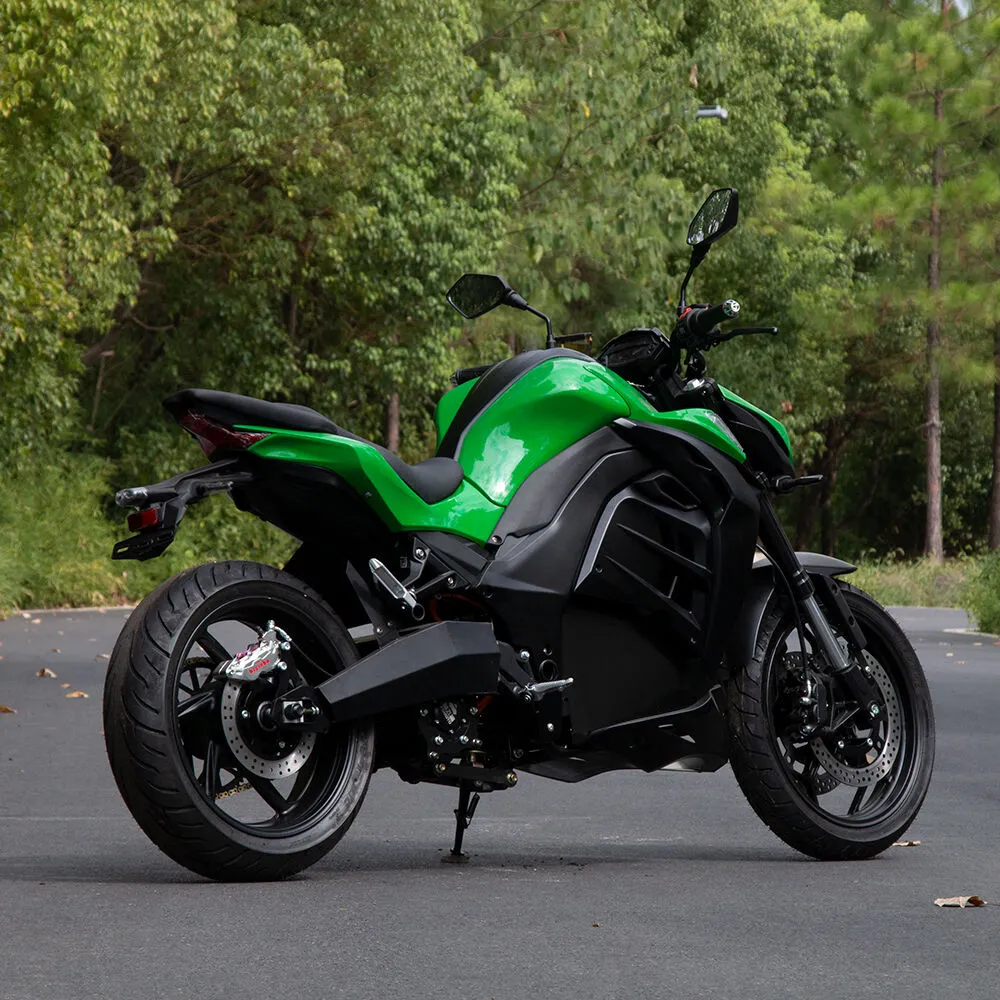

CH18090-Z1000
Electric motorcycle
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: ceo@fs-moto.comTechnical Parameters
- Basic parameters
- Vehicle body parameters
- Wheel brake
- Multimedia / Comfort Configuration
- Lighting configuration
- Optional Configuration content
- Battery parameters
| Brand: | FSMOTO | |
| Style: | Sports Motorcycle | |
| Origin: | China | |
| Manufacturer: | Zhejiang Yongkang Chaohang Technology Co., Ltd. | |
| Drive mode: | Central motor with chain drive (100% electric drive) | |
| Power: | 8000W | 15000W |
| Rotational speed: | 4000/6500 | 4300/6200 |
| Control system: | FS660/APP/72V | FS1200/APP/72V |
| Transmission: | 4-speed with reverse gear | |
Official 0-100km/ h acceleration (s)： | 6S | 3S |
| Max speed (km/h): | 130km/h | 180km/h |
| Optional battery: | 72V45AH / 72V65AH / 72V100AH / 72V120AH / 72V160AH | |
| Maximum range: | 72V45AH=100KM / 72V65AH=130KM / 72V100AH=200KM / 72V120AH=240KM / 72V160AH=320KM | |
| Official average power consumption(Ah/100km): | 50Ah | |
| Vehicle warranty: | 1 year | |
| Available colors: | Custom accepted | |
| Length x width x height： | 2220x850x1320mm |
| Seat height： | 750mm |
| Wheelbase： | 1570mm |
| Curb weight： | 130KG |
| Battery box capacity： | 160AH |
| Frame form: | Steel tube woven frame |
| Rear arms: | Both arms |
| Front suspension system: | Inverted damping hydraulic shock absorption |
| Rear suspension system: | Spring hydraulic shock absorber |
| Type of energy: | Electricity |
| Front wheel specifications: | 110/70-17 |
| Rear wheel specifications: | 200/55-17 |
| Tire form: | Vacuum tire |
| Wheel hub: | Aluminum alloy casting type |
| Front brake system: | disc brake dual disc / floating caliper / dual piston |
| Rear brake system: | disc brake single disc / floating caliper / dual piston |
| Instrument panel: | LCD meter |
Mobile phone connection function (Bluetooth): | Optional configuration |
| Motorcycle speaker： | Optional configuration |
| Gear display: | 4 gear adjustment / with reverse gear |
| USB charging port: | Standard configuration |
| Keyless start: | Standard configuration |
| Headlights： | LED |
| Rear lights: | LED |
| Turn light: | LED |
| Day walk light: | LED |
Hazard warning light (double flash): | Standard configuration |
| Passing light: | Standard configuration |
| Floating brake disc | (type 2 fast charger）Car charging port & charging gun (type 2 fast charger) |
Counterpoint four-piston caliper | Three Boxes (Trunk and side boxes) |
| Driving recorder | Bluetooth speaker |
Control system bluetooth module | RCS direct push pump |
| Circular headlight | Front guard bar |
| ABS anti-lock system | Water cooling system |
| Battery capacity | Battery type | Max range | Charge-discharge cycle times | Standard charger current | Charge time |
| 72V45A | Ternary lithium battery (LG cells) | 100km | 1500 | 10A | 4.5H |
| 72V65A | 130km | 1500 | 10A | 6.5H | |
| 72V100A | 200km | 1500 | 15A | 6.5H | |
| 72V120A | 240km | 1500 | 15A | 8H | |
| 72V160A | 320km | 1500 | 20A | 8H | |
| 72V180A | 360km | 1500 | 20A | 9H |
