Lithium battery

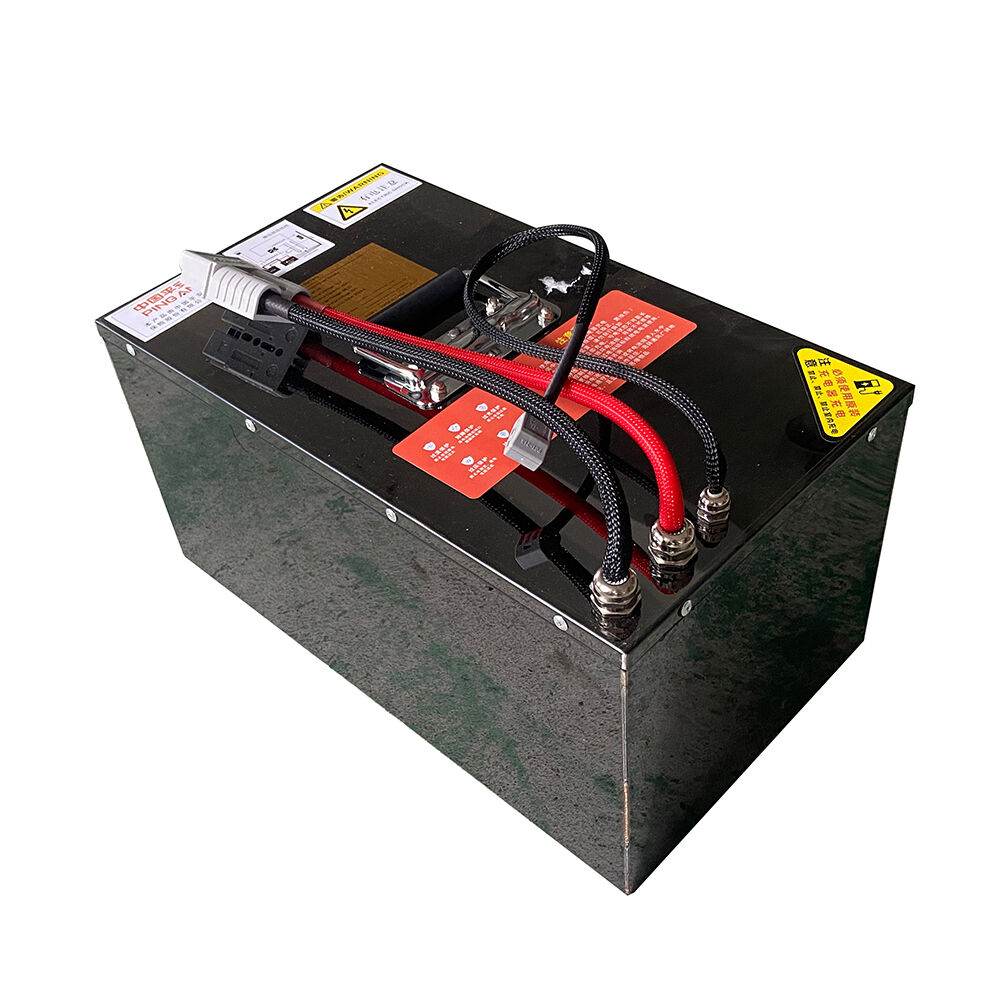

Electric motorcycle battery
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: ceo@fs-moto.comTechnical Parameters
| Nominal capacity | 45Ah | 65Ah | 100Ah | 120Ah | 160Ah | 180Ah |
| Discharge Current | 135A | 195A | 300A | 360A | 480A | 540A |
| Charging current | 25A | |||||
| Operating temperature | -20℃--55℃ | |||||
| Charging temperature | 0℃--50℃ | |||||
| Storage temperature | 0℃--45℃ | |||||
| Charging high temperature protection | 55℃ | |||||
| Charging low temperature protection | -10℃ | |||||
| Overcharge protection time delay | 500--1000ms | |||||
| Overcharge release voltage | 88.2V士0.05V | |||||
| Overdischarge protection voltage | 63V士0.5V | |||||
| Overdischarge protection time delay | 500--1000ms | |||||
| Overdischarge release voltage | 64V士0.5V | |||||
| Secondary Stage overcurrent voltage | 100mv | |||||
| Short circuit trigger voltage | 200mv | |||||
| Secondary overcurrent delay | 640ms | |||||
| Communication protocol | nothing | |||||
| Exit mode | Anderson | |||||
| Discharge Mode | External relay | |||||
| Appearance Dimensions | 400x230x200mm | 400x230x200mm | 330x230x310mm | 330x230x310mm | 330x230x345mm | 440x280x320mm |

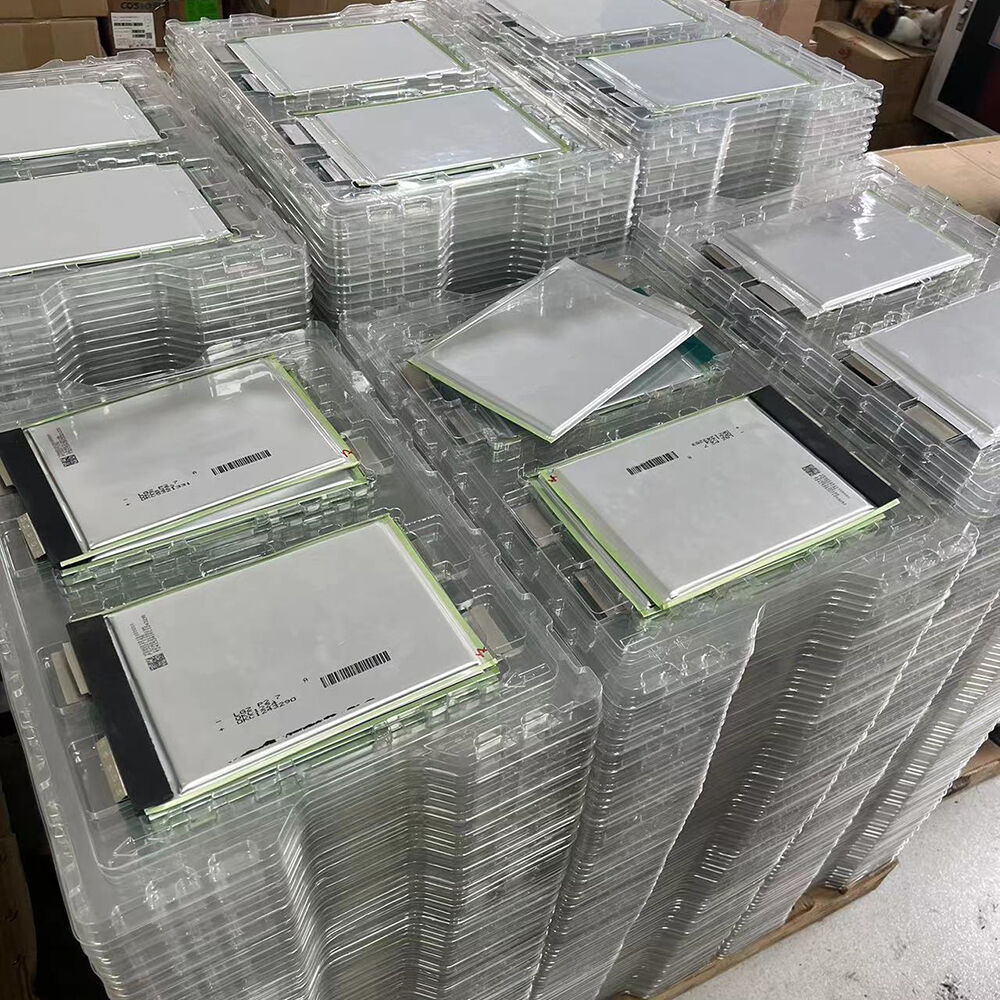

| Cell type | LG45A | LG65A | LG100A | LG120A | LG160A | LG180A |
| Maximum reference range (average speed 50) | 100KM | 130KM | 200KM | 240KM | 320KM | 360KM |
| Number of charge and discharge cycles | 2000 | |||||
| Standard charger | 10A | 10A | 15A | 15A | 20A | 20A |
| Charging time | 4.5h | 6.5h | 6.5h | 8h | 8h | 9h |
