K6CB300F

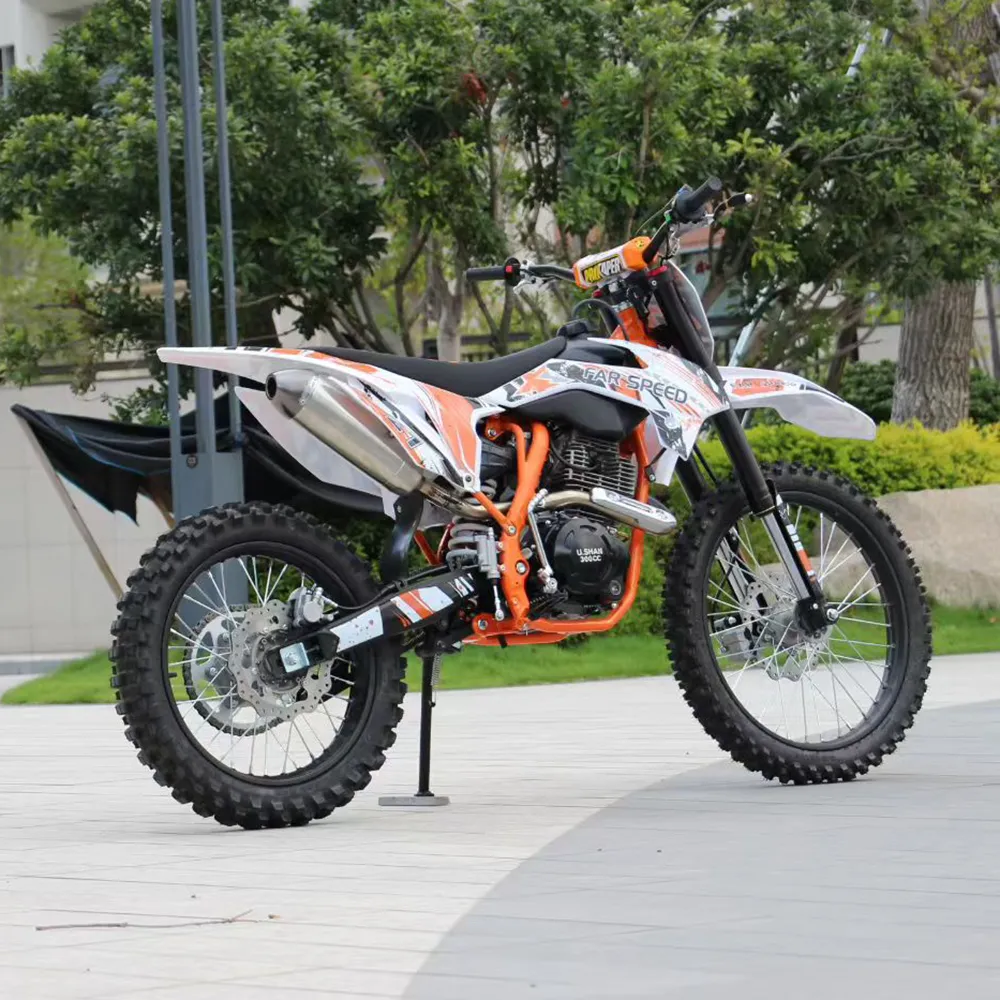

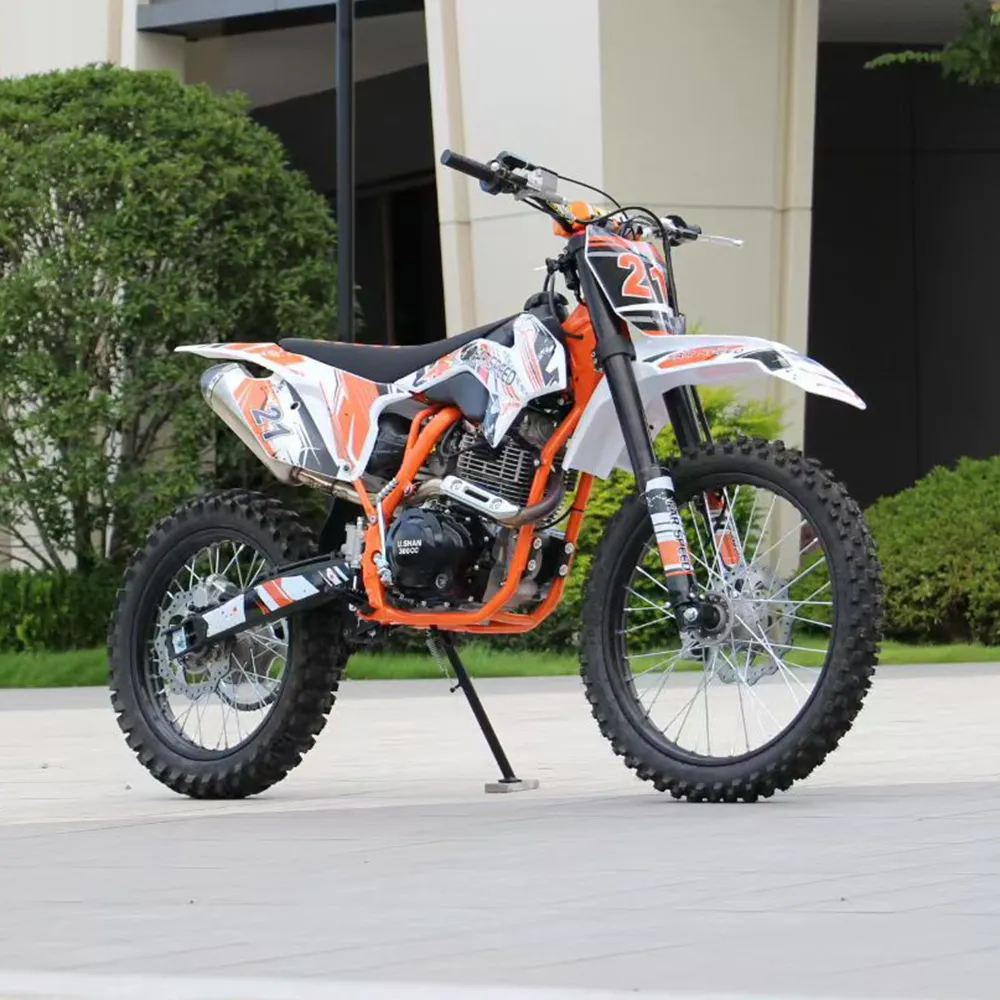

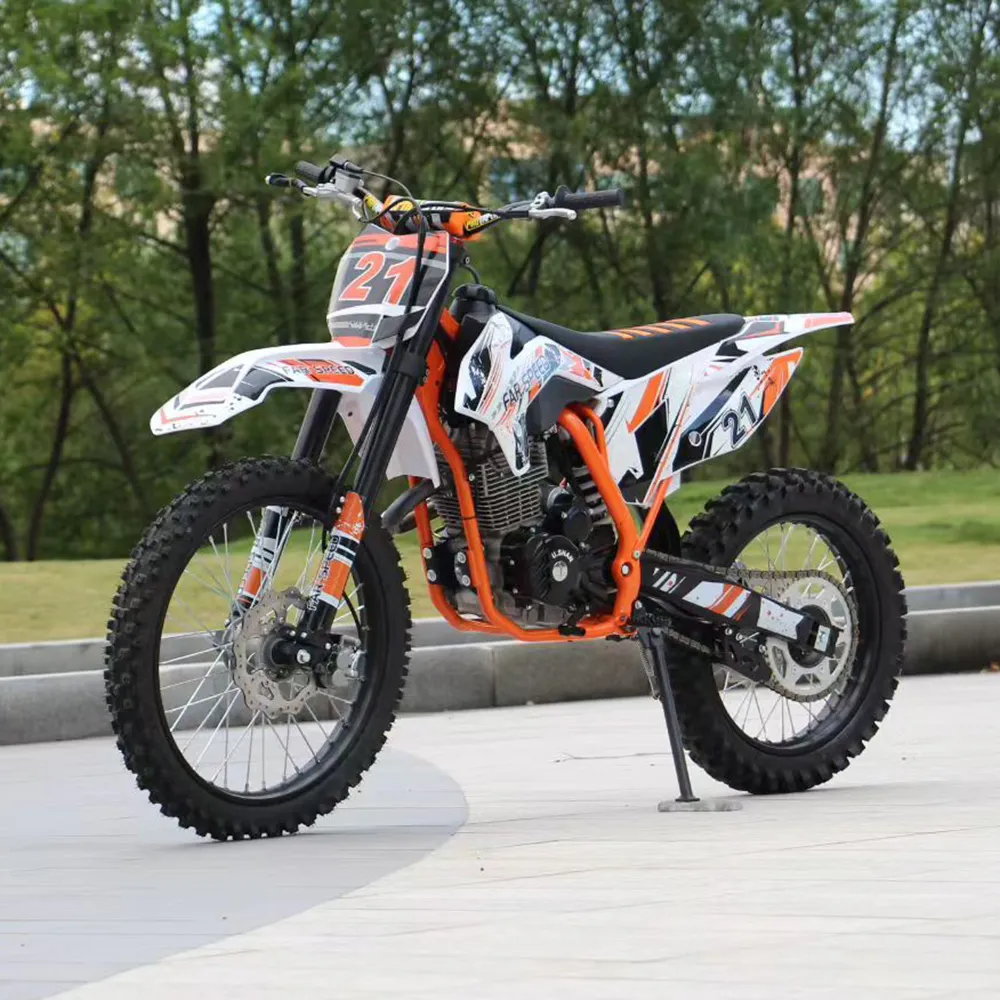

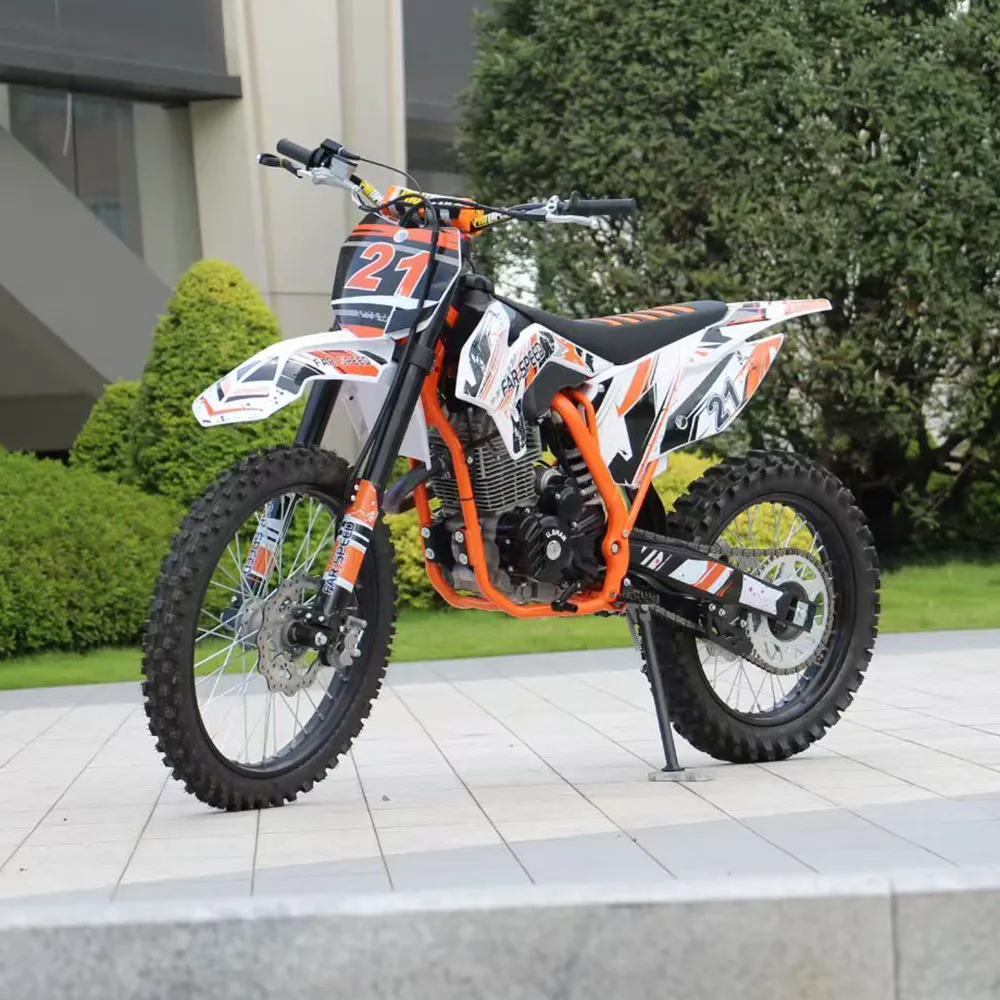

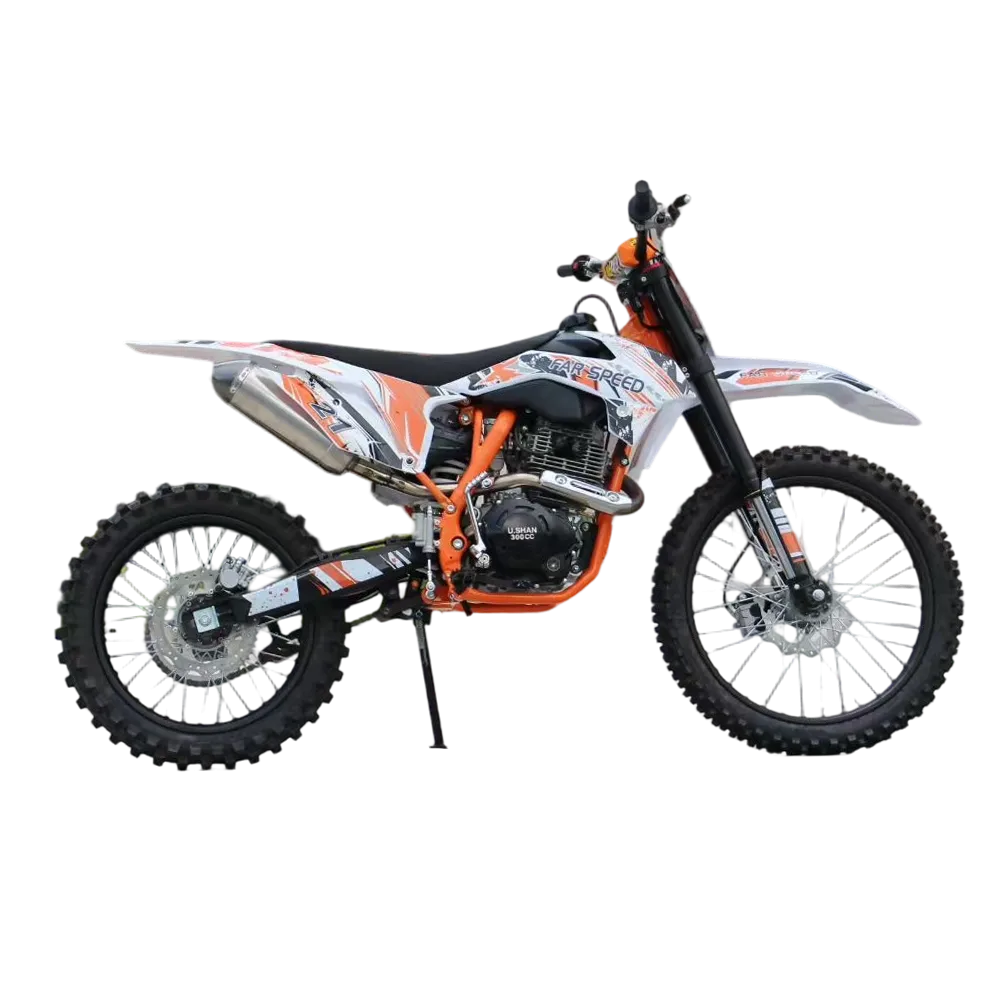

Fuel Dirt Bike
Get in touch with us
Let us contact you for more information, availability and pricing.
Email: ceo@fs-moto.com- Basic parameters
- Vehicle body parameters
- Wheel brake
- Multimedia / Comfort Configuration
- Lighting configuration
- Optional Configuration content
Engine | CB300F single cylinder, four stroke, natural air cooling, inclined type, overhead cam |
| Displacement | 271.3 ml |
Maximum power | 15/8500 kw/r/min |
Maximum torque | 21/6500 N.m/r/min |
Compression ratio | 9.29:1 |
Gear shifting | Two-stage transmission with five speeds, international gears 16-2-3-4-5, equipped with high-strength aluminum alloy gear lever, electric/foot start |
Startup method | Fuel control system PE30 Youli carburetor |
| Transmission | #520，13/47T Sprocket drive |
Fuel tank capacity | 6.5L |
Front shock absorber | Inverted non-adjustable fork, L=830mm, fork tube 37m, travel 180m |
Rear shock absorber rear flat fork | Non-adjustable L=450mm, built-in airbag, stroke 90mm |
High-strength reinforced welded steel cradle structure，L=560mm | |
Length x Width x Height | 2200x800x1220mm |
Wheelbase | 1350mm |
Seated height | 920mm |
Minimum ground clearance | 310mm |
Frame | Cradle-type steel tube frame |
Gross weight | 141KG |
Tire specifications | Front 80/100-21，Rear 100/90-18 |
Front and rear rims | Front 1.6x21，Rear 215x18，6 series aluminum rims, die-cast drum core |
Front brake | Dual-piston hydraulic brake, ∅240mm disc brake |
Rear brake | Single-piston hydraulic brake, φ240mm disc brake |
